How to turn a Vintage Zenith Radio Cabinet into a Lighted Bar Part 2: Disassembly

Disassembly

Now that we had the radio cabinet home, we could begin to remove the radio parts and faceplates before attempting to cut the door into the front.

The Radio

Pulling out the radio was relatively easy. I took out a few screws, and pulled the whole assembly out the back.

The radio

The radio

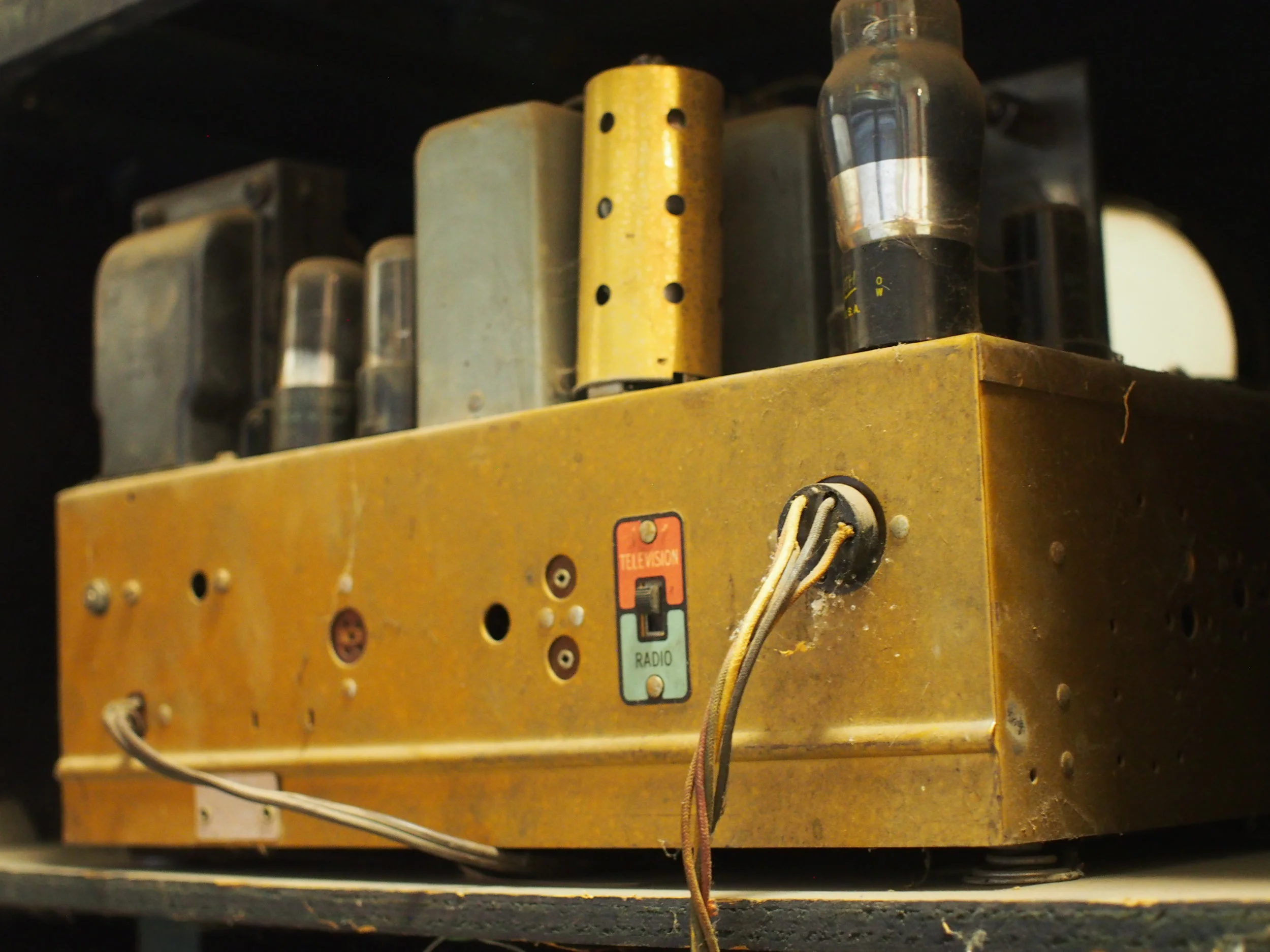

The guts of the radio and the speaker

The guts of the radio and the speaker

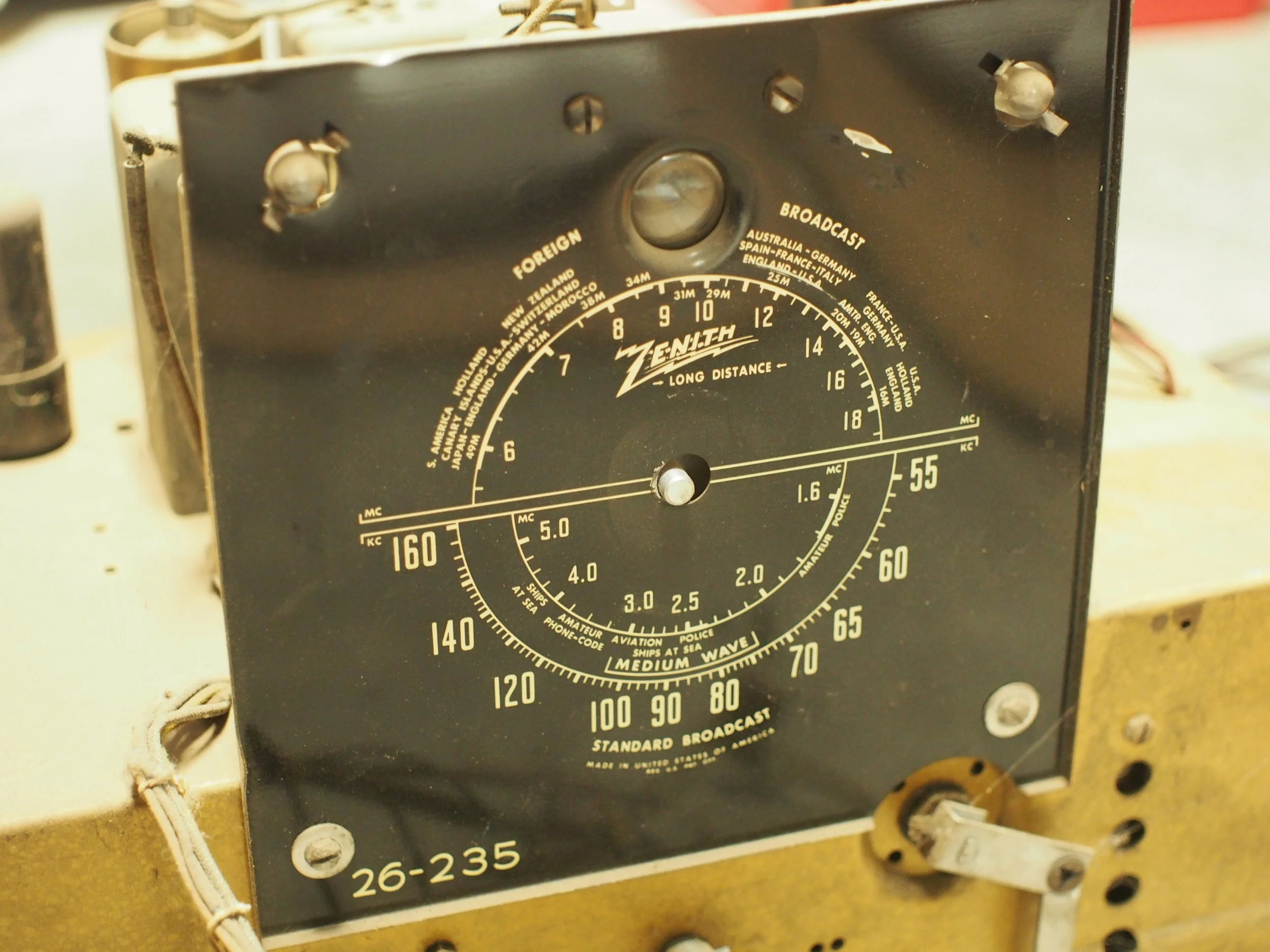

The dial

The dial

Getting the face plate off was a little harder. The screws were hidden behind the rocker buttons, and I couldn't figure out how to get to them. It turns out, there is a spring-loaded pin that holds the plate with the buttons in place.

The back of the face plate

The back of the face plate

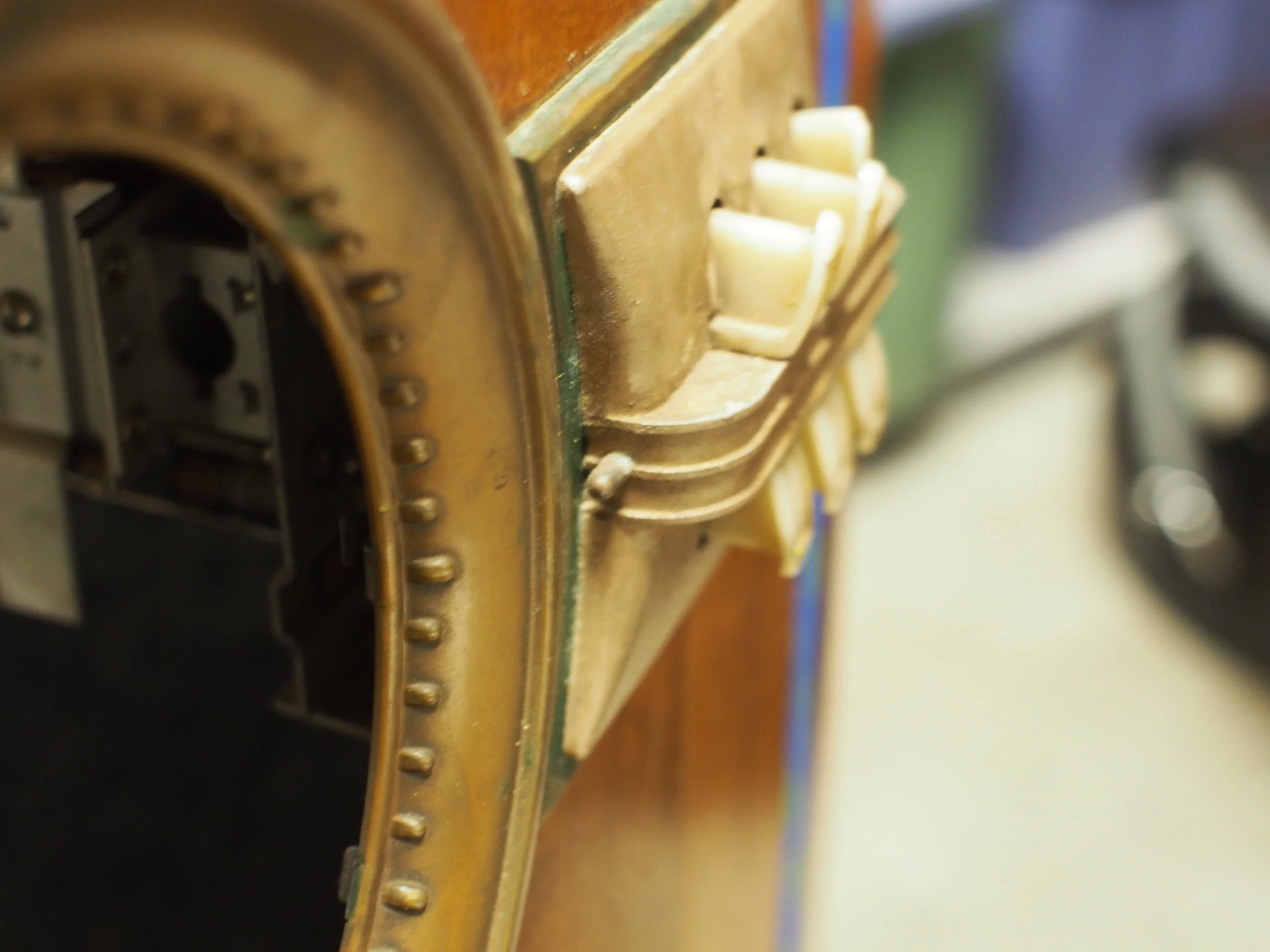

Taking off the buttons using the spring pin

Taking off the buttons using the spring pin

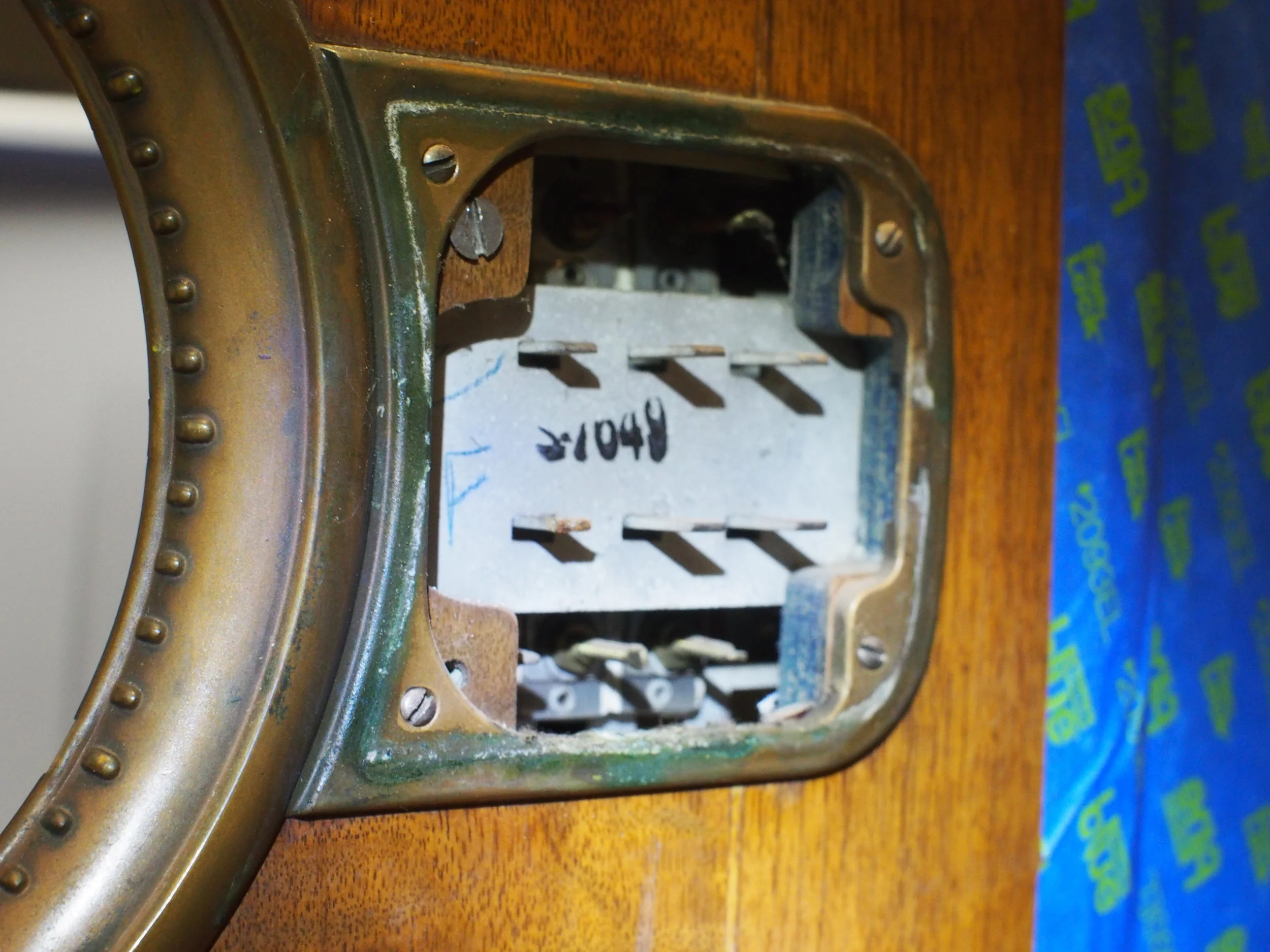

Screws exposed

Screws exposed

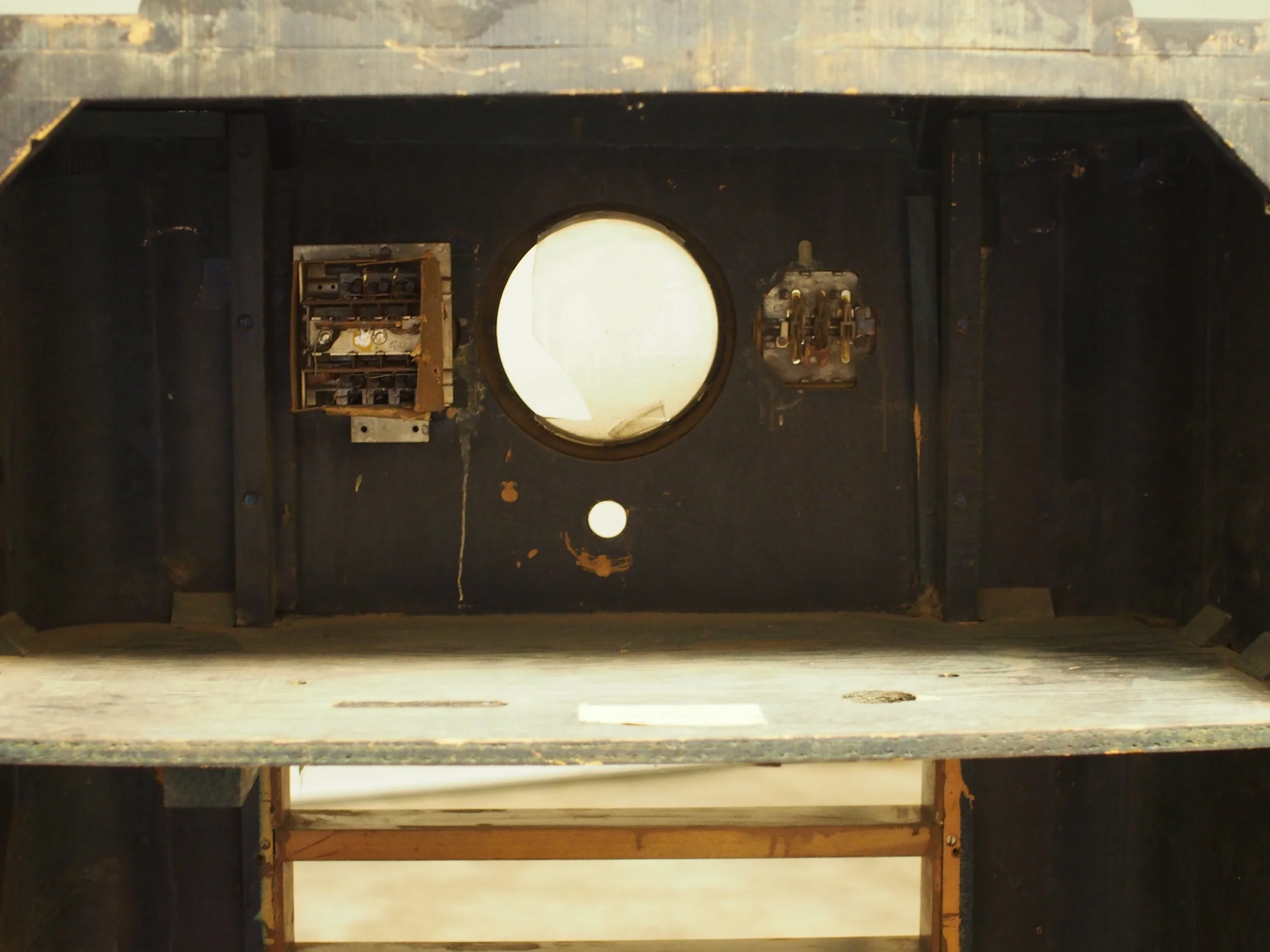

With the cabinet bare, I took some measurements of where I wanted to put the door.

Overall dimensions, plus a nice whiskey tasting to boot

Overall dimensions, plus a nice whiskey tasting to boot

Radio bar door measurements

Radio bar door measurements

We cut out the shelf the radio was on, but we decided to put another one in a similar place, with enough room for bottles on top. It turns out to be a really good place to display things through the dial glass. I also ended up making some new shelves on top of that, but we'll get to the interior modifications later.

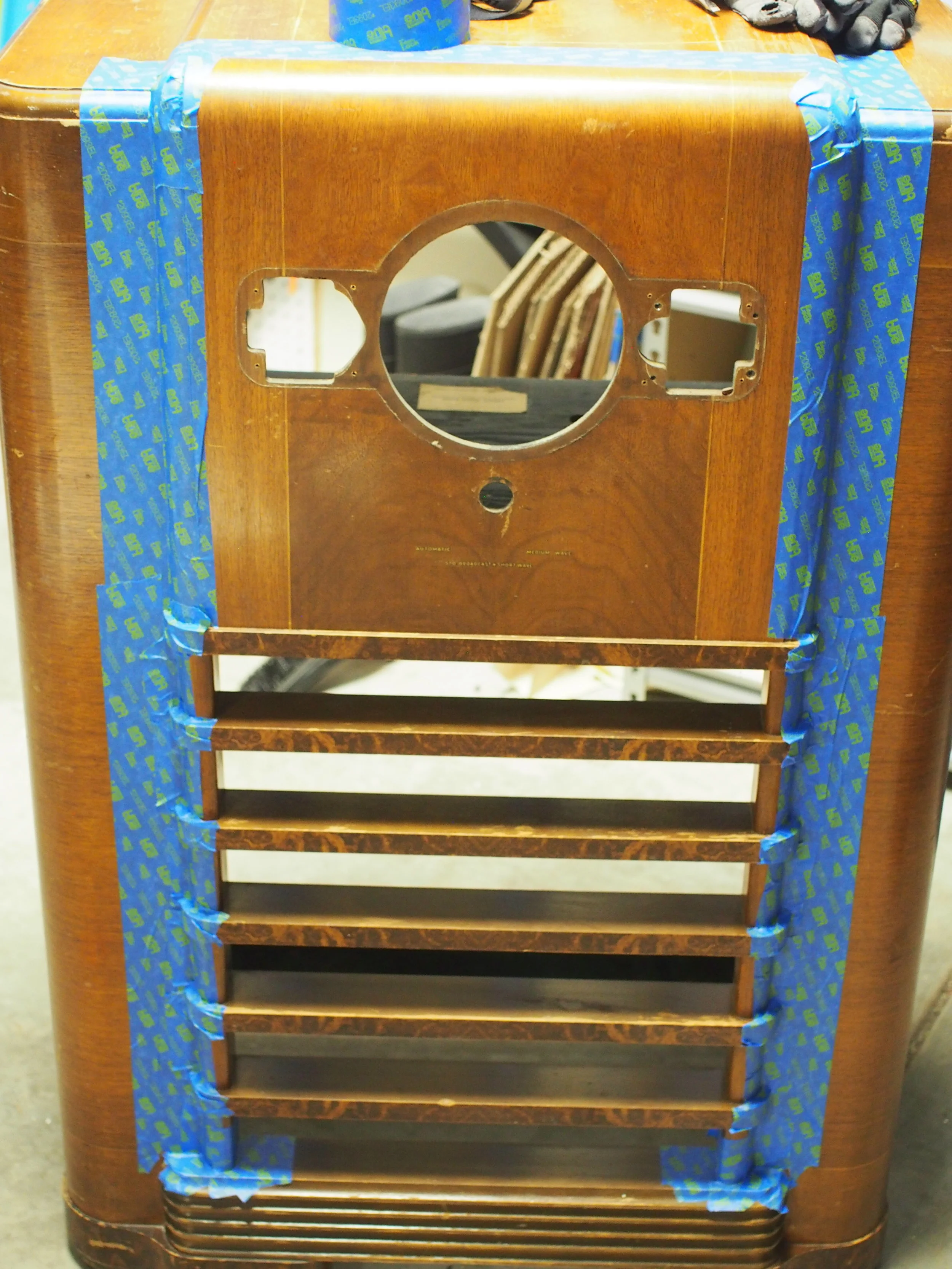

Based on the plans, my wife put some painter's tape in the areas I wanted to cut. This keeps the splintering down when you cut with a saw.

Ready to cut the door

Ready to cut the door

On the inside of the cabinet were two tags. One had the model number, plus all of the patents Zenith claimed on the design of the radio. There was also the business card of a local radio repair shop. We decided to keep them both. The business card came off the shelf ok, but we had to leave the Zenith tag, and mask it for later painting of the interior.

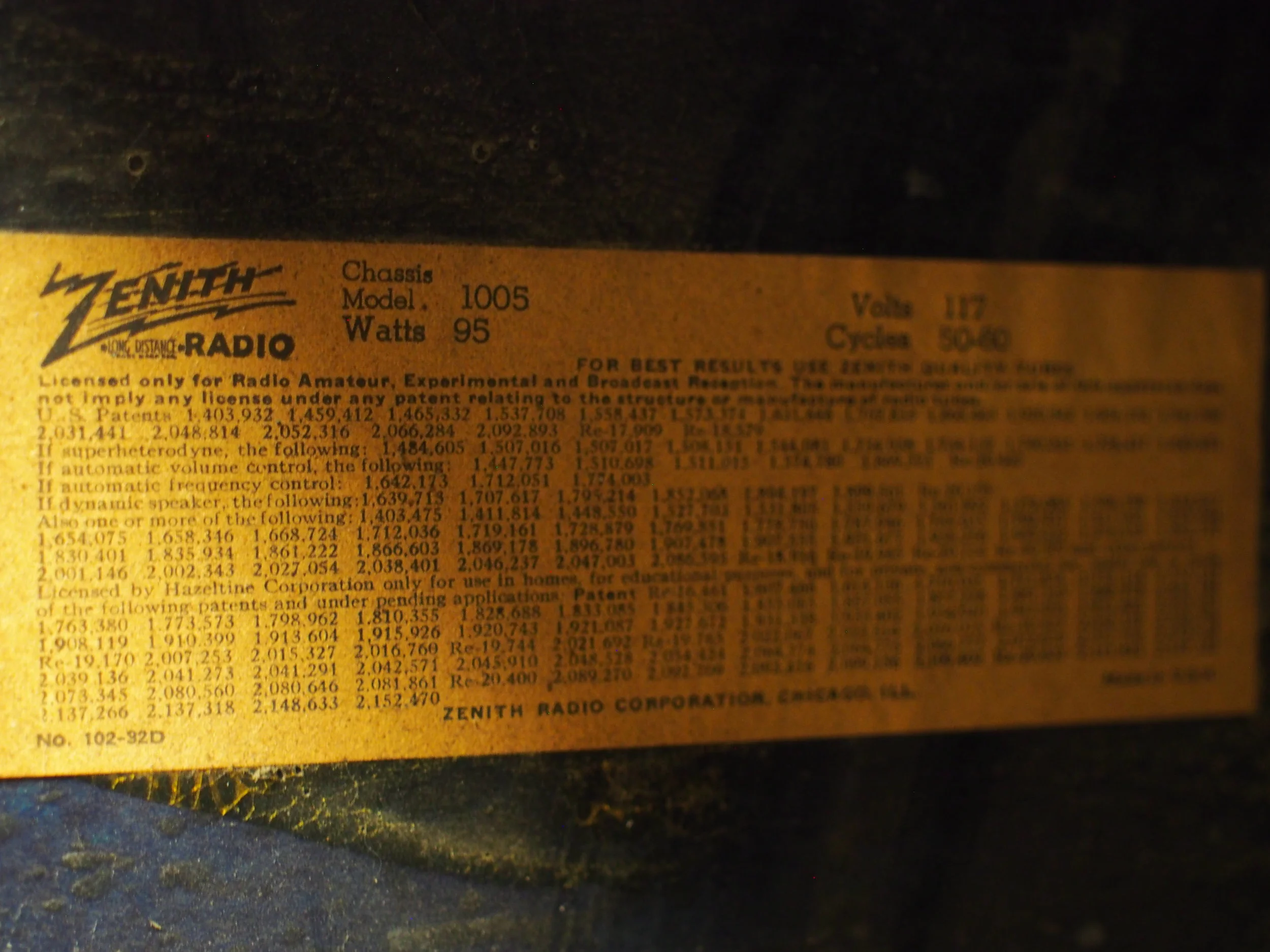

Zenith patents and model number tag

Zenith patents and model number tag

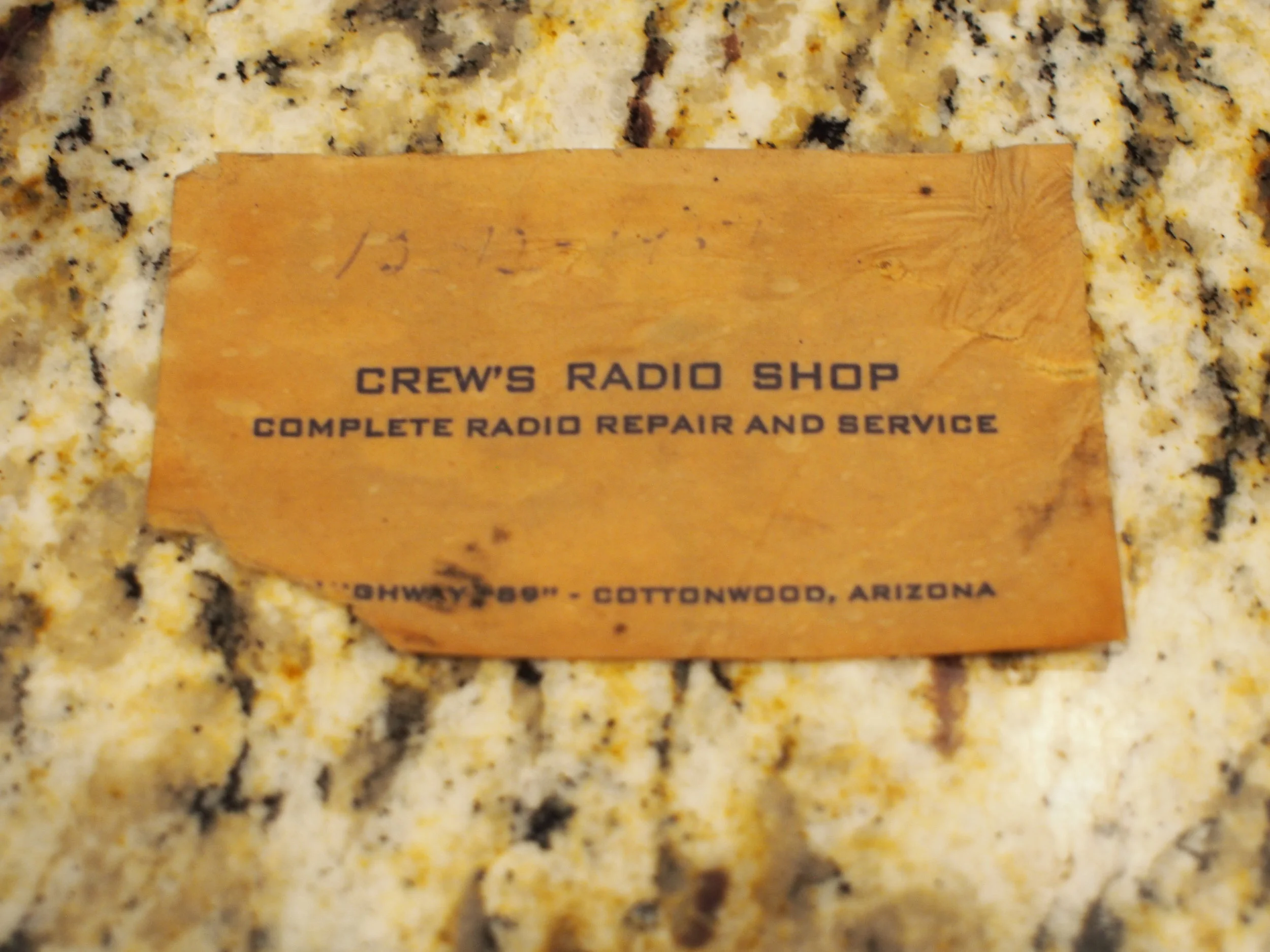

Repair shop

Repair shop
